Edge-Lit vs Backlit SEG Light Boxes: How Buyers Should Specify the Right System

Edge-lit or backlit SEG light box: compare depth, uniformity, brightness, heat and service access before the drawing is approved.

Edge-lit and backlit SEG light boxes can carry the same printed fabric face and look identical in a catalogue photo. What separates them is where the light starts, how deep the frame has to be, and how the face behaves once it is 2 m wide. This guide compares the two architectures on the numbers that decide a purchase: uniformity, brightness, depth, power, heat and service access.

What Each System Actually Is

An edge-lit box places LED strips along one or two inside edges of the frame. The light enters a light guide panel, a clear acrylic sheet printed with a dot pattern that releases light across the face. The result is a thin profile, typically 30 to 50 mm, with a soft and even glow on small and medium faces.

A backlit box places an array of LEDs on the back panel and spreads their output through a diffuser before it reaches the graphic. The frame is deeper, typically 80 to 120 mm, because the diffuser needs distance to blend the LEDs into an even field. Larger faces and higher brightness are the reward.

Both systems hold a silicone-edge graphic: a printed fabric with a 2 mm silicone strip sewn to the perimeter, pressed into a groove in the frame. The graphic is tensioned by the frame, not by the print.

Why Buyers Care: The Four Numbers That Decide the Order

Uniformity. Measured as the minimum brightness divided by the maximum across the face. Edge-lit units commonly reach 75 to 85 percent; a well-spaced backlit unit reaches 85 to 95 percent. A dark corner or a bright band near an edge is visible at retail distance even when the meter says the average is fine.

Brightness. Retail light boxes usually sit between 1,000 and 2,500 nits for edge-lit and 1,500 to 3,500 nits for backlit. A window facing direct sun needs the upper end; a hotel corridor needs far less.

Depth. A shallow reveal may only accept 30 mm. Choosing a backlit unit for a 30 mm recess is not a preference question, it is an installation failure.

Power and heat. Backlit arrays draw more power per square metre and put more heat behind the face. That affects driver sizing, ventilation and, in a sealed box, the long-term colour stability of the print.

How Light Travels in Each System

In an edge-lit box the light guide does the work. Dots etched into the acrylic scatter light downward; dot density rises with distance from the LED edge to compensate for attenuation. A well-made guide produces an even face; a cheap one shows a bright stripe near the LEDs and a dim far edge.

In a backlit box the diffuser does the work. LED spacing, the distance to the diffuser and the diffuser grade decide whether individual LEDs are visible as hot spots. A common rule is that the diffusion distance should be at least the LED pitch; squeeze the depth and the spots return.

This is why frame depth is a design output, not a marketing number. The depth exists to give the optics room. When a supplier offers a very thin backlit box, ask what the LED pitch is and how the hot spots are controlled.

Where Each Format Fits

SettingEdge-lit fitBacklit fitWhy
Mall window, 2-4 m faceGoodBetterHigh ambient light needs the brighter face

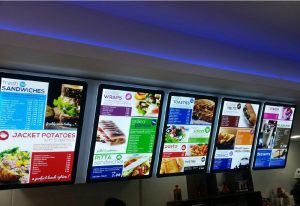

Small menu or poster, under 1.2 mBetterWorkableThin profile, lower power
Hotel or clinic corridorBetterWorkableSoft glow, shallow recess
Double-sided hanging signWorkableBetterBacklit holds uniformity on both faces
Recess under 50 mmOnly optionNoDepth is fixed by the building
Face over 4 mNot advisedBetterLight guide size and weight become impractical

Edge-Lit vs Backlit: The Specification Table

SpecificationEdge-litBacklit
Typical depth30-50 mm80-120 mm
Typical uniformity75-85%85-95%
Typical brightness1,000-2,500 nits1,500-3,500 nits
Best face sizeUp to about 2.5 m2 m and above
Power per square metreLowerHigher
Heat behind the faceLowModerate
Service accessFront graphic changeFront graphic change
Cost driverLight guide panelLED count and diffuser

Is Backlit Always Brighter? No

Brightness depends on the LED count, the drive current and the diffuser, not on the architecture alone. A dense edge-lit design can outperform a sparse backlit one at the same face size. Compare measured values from the same meter, at the same colour temperature, after the same warm-up time. A quote that lists only the LED brand is not a brightness specification.

The same applies to uniformity. Ask for the measurement method: how many points, at what distance, with what meter and after how long. Nine points across the face, measured after 30 minutes, is a reasonable standard for retail work.

When Edge-Lit Is the Wrong Choice

Edge-lit is the sensible default for shallow, small and medium faces. It is the wrong choice in the situations below.

SituationWhy edge-lit failsWhat to do instead
Face wider than about 2.5 mLight guide weight and evenness degradeSpecify backlit with a diffuser sized to the face
Window in direct sunLower brightness loses the graphic in daylightBacklit at the upper brightness range, or an outdoor-rated unit
Sealed box with no ventilationHeat builds behind the facePlan airflow or reduce drive current, then verify with a temperature test
Face that needs 90%+ uniformityEdge attenuation shows at the far edgeBacklit with LED pitch matched to diffuser distance

How to Choose: Seven Checks Before You Order

1. Measure the reveal. Depth under 50 mm rules out most backlit designs. Record the depth at the mounting point, not at the widest part of the recess.

2. Measure the visible area. The visible area is what the customer sees after the frame, not the opening. A 6 m opening can deliver a 5.8 m face.

3. Set a brightness target in nits. Match it to the ambient light. A sunlit window and a corridor need different numbers, and the same box cannot serve both well.

4. Set a uniformity target. Ask for the measurement method and the minimum-to-maximum ratio, not for a promise that it looks even.

5. Fix the colour temperature and CRI. 3000 K, 4000 K and 6500 K change how a printed colour reads. CRI 80 is common; CRI 90 is worth asking for when brand colour matters.

6. Confirm the power and driver plan. Voltage, driver location, cable entry and access for replacement. A driver buried behind a sealed panel is a future service problem.

7. Approve a lit sample. Judge the face with the light on, at the real viewing distance, before the bulk order. A printed proof under desk light tells you nothing about the glow.

Common Mistakes Buyers Make

  • Buying by frame depth. A thin frame is not automatically better; it limits the optical design.
  • Comparing brightness quotes at different colour temperatures. Warm white and cool white read differently at the same nits.
  • Skipping the warm-up. LED output settles after 20 to 30 minutes. Measure then, not at switch-on.
  • Ignoring the graphic. A dark print hides uneven light; a white print exposes it. Test with the real artwork.
  • Forgetting service access. If the driver or the connector cannot be reached, every repair becomes a removal job.
  • Mixing power supplies. One undersized driver for two faces is a flicker complaint waiting for winter.

Common Questions About This Topic

Is edge-lit or backlit better for a retail window?

For a window that faces daylight, backlit usually wins because it can deliver more brightness across a large face. For a shaded interior window under 2 m, edge-lit gives a thinner profile with enough output.

Can an edge-lit box be made 3 m wide?

It can be built, but the light guide becomes heavy and evenness drops toward the far edge. Above about 2.5 m, a backlit design with a properly spaced diffuser is the more predictable choice.

What uniformity should I ask for?

Ask for the minimum-to-maximum ratio across nine points, measured after 30 minutes. For retail faces, 80 percent or better is a reasonable floor; 85 to 90 percent is a premium target.

Does a thinner frame mean a cheaper box?

Not necessarily. The light guide panel inside an edge-lit box is a precision part, and thin backlit designs need tighter LED spacing. Compare the full bill of materials, not the profile alone.

How do I compare two quotes fairly?

Fix the face size, brightness, colour temperature, CRI, uniformity and driver specification, then ask both suppliers to quote against the same list. A cheaper quote usually differs on one of those lines.

Can I change from edge-lit to backlit later?

Only by replacing the box. The frame depth, the back panel and the optics all change. Decide the architecture before the first drawing is approved.

The Bottom Line on Edge-Lit vs Backlit

Choose edge-lit when the face is small or medium, the recess is shallow and a soft even glow is enough. Choose backlit when the face is large, the window is bright or uniformity has to hold across several metres. Then write the numbers into the RFQ: depth, brightness, uniformity, colour temperature and driver plan. The architecture follows the numbers, not the other way round.
