Factory-direct manufacturer · Guangzhou & Foshan

Custom LED Light Box & Display Manufacturer

Factory-built SEG fabric light boxes, magnetic and snap frames, outdoor double-sided signage and trade show displays. Every order is built to a written drawing, checked per batch and packed for export.

Reply within 2 hours
Drawing-based production
QC records per batch
Export packing

GET A CUSTOM SOLUTION See technical specifications

Trusted · Reliable · Accountable

Trusted LED Light Box Manufacturer. Reliable Display Supplier. Accountable Direct Factory.

Two production sites in Guangzhou and Foshan. Drawing-based production, batch QC records and export packing for retail chains, exhibition contractors, signage distributors and brand agencies.

2 production sitesGuangzhou and Foshan, Guangdong
13 display familiesLight boxes, frames, signage and exhibition systems
Drawing sign-offSpecification confirmed before production
2-hour replyDuring working days, one named contact

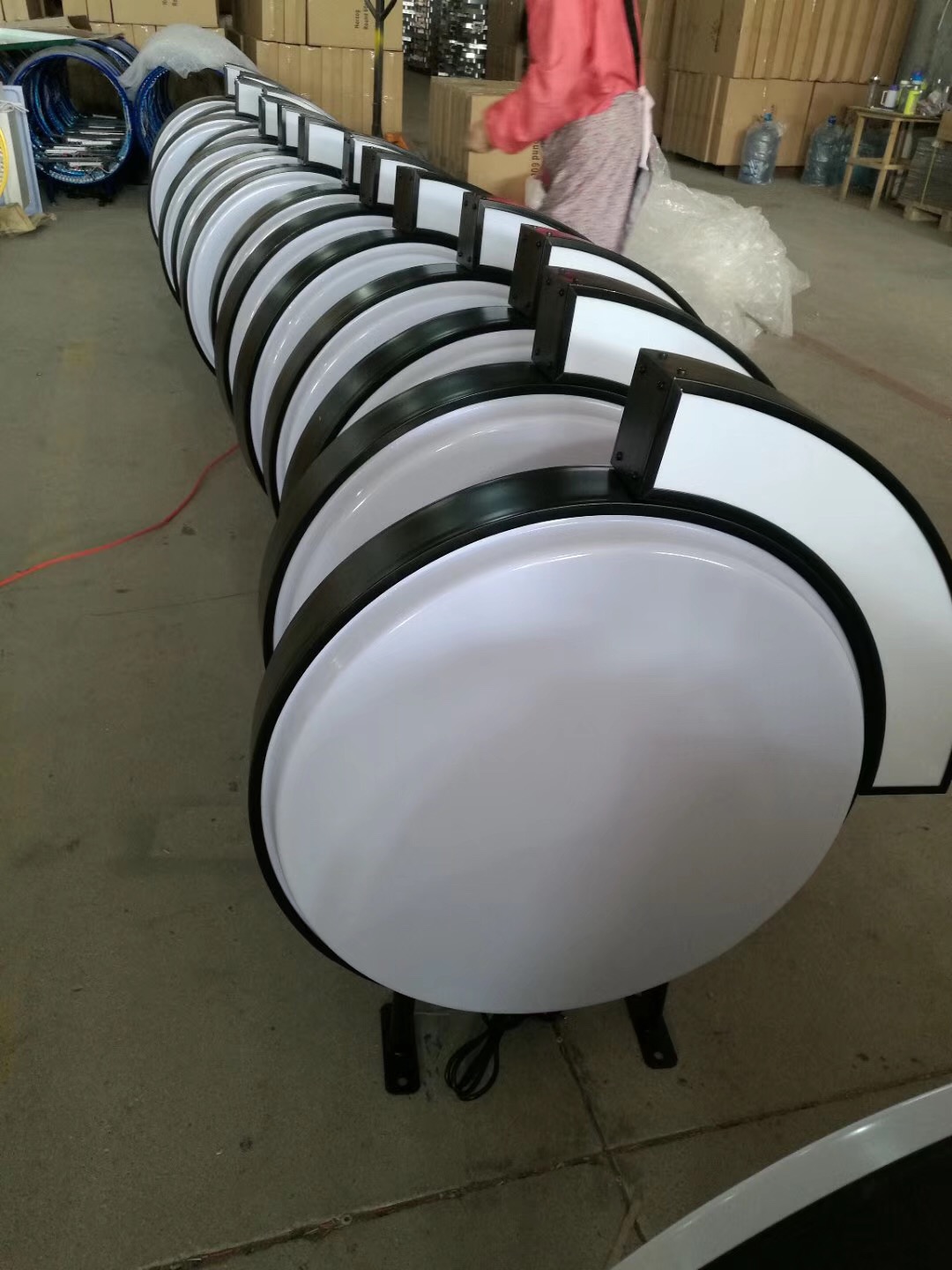

Vacuum forming a double-sided LED light box

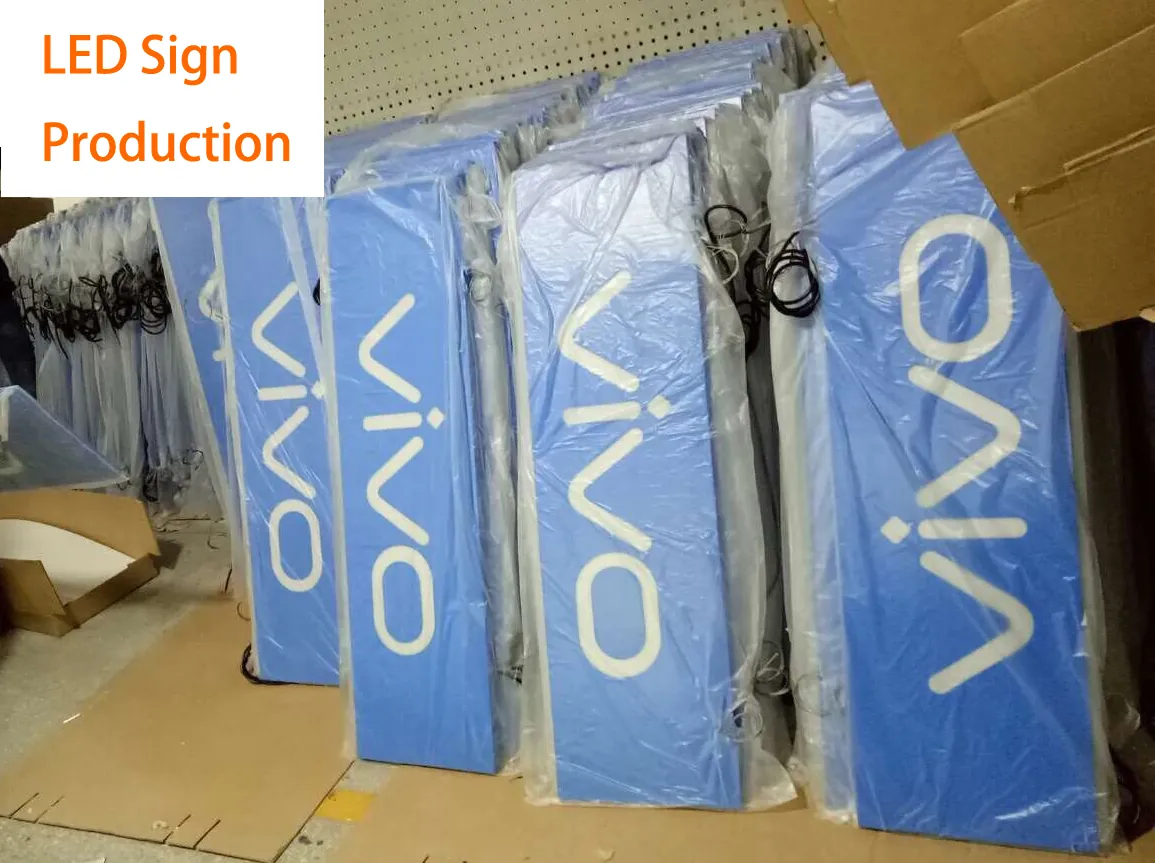

LED light box quality control inspection record

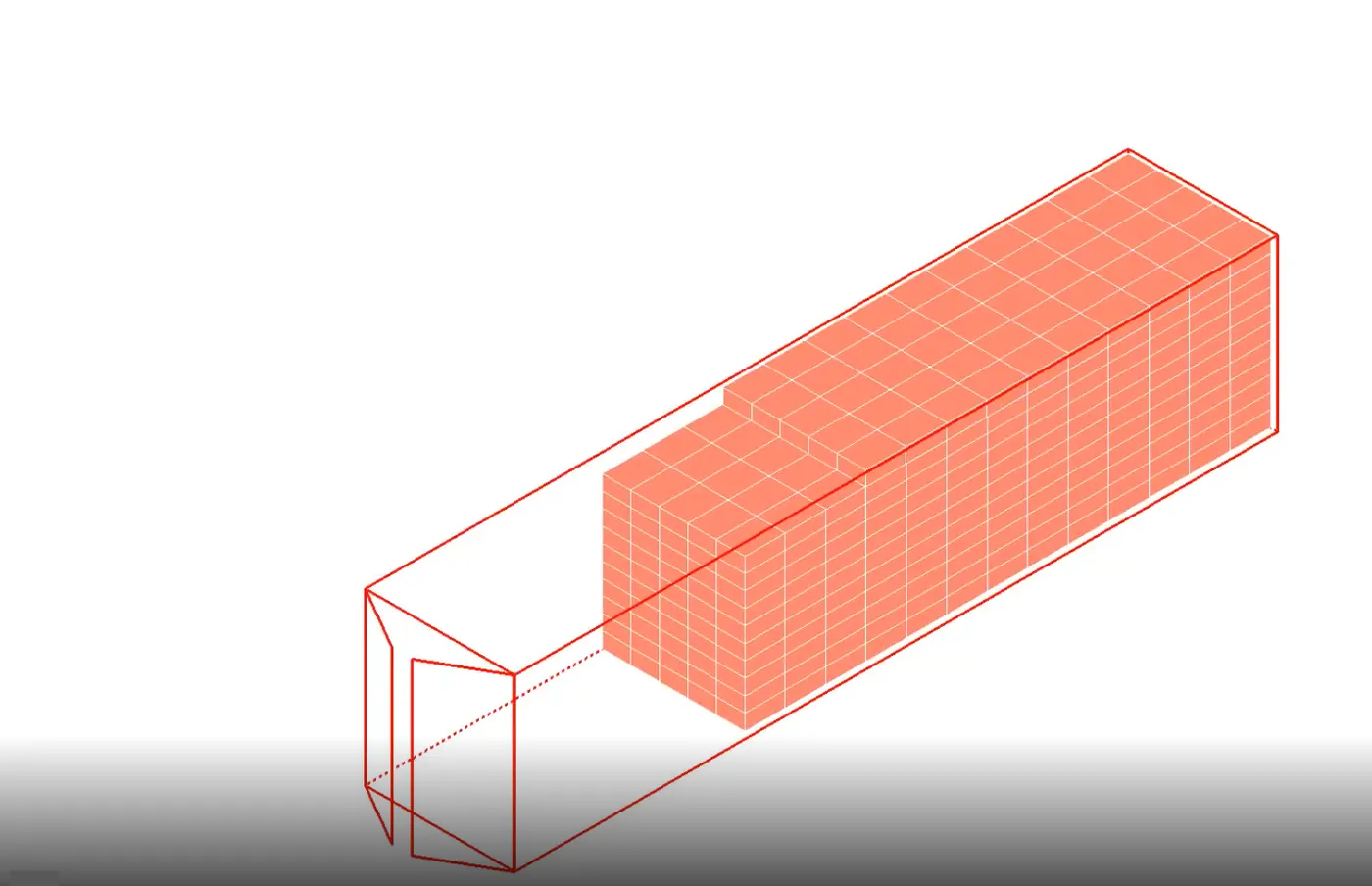

Container loading plan for display export

What it is

What Is a SEG Fabric Light Box?

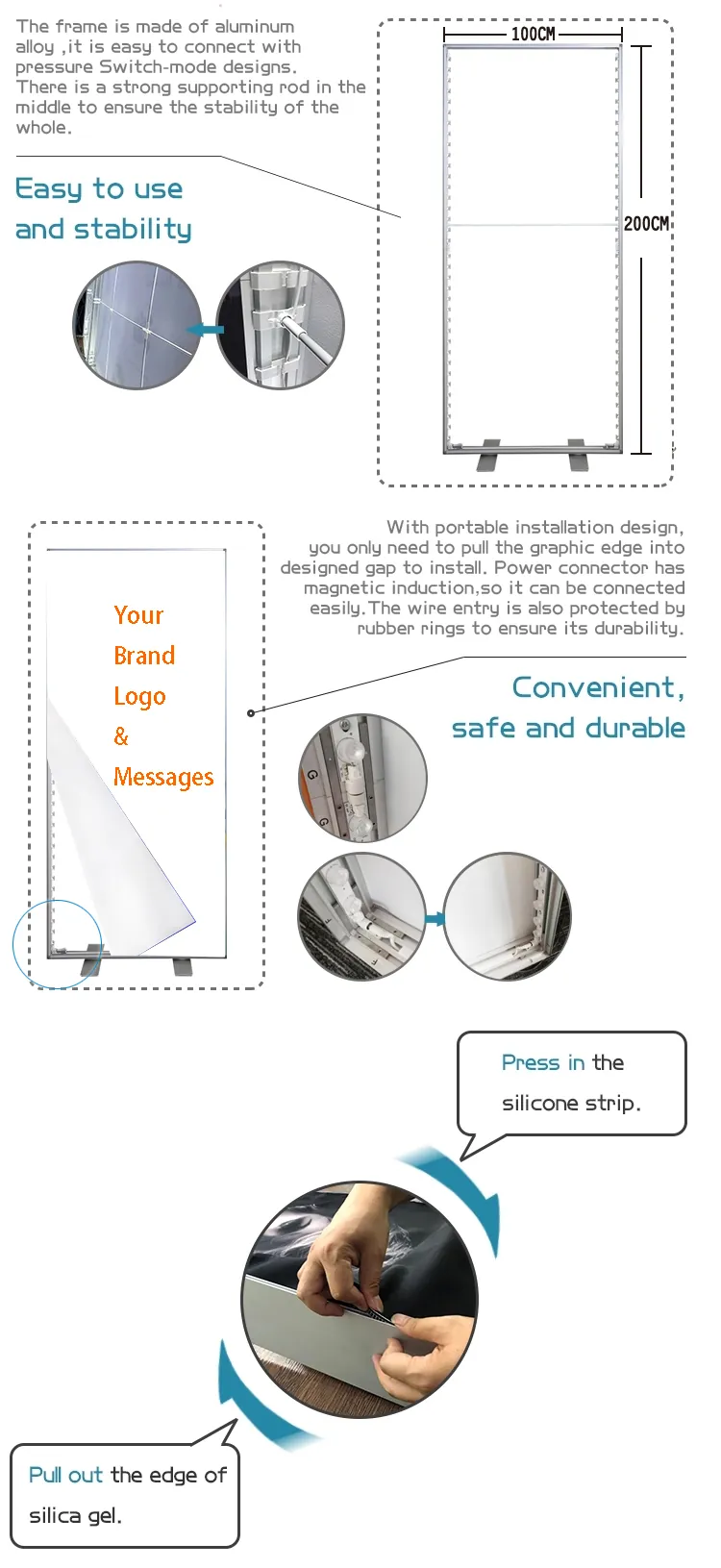

A SEG fabric light box is an aluminium frame with an LED light engine and a tensioned polyester graphic. The printed fabric carries a silicone edge that presses into a groove in the frame, so the face stays flat with no visible fixings.

It is not a video screen, and it is not the same as a pillowcase fabric display. The frame groove, the silicone edge and the distance between the LEDs and the fabric are what make the face look even.

Replaceable graphic: campaign changes without buying a new frame.
Even illumination: LED pitch and diffuser matched to the frame depth.
Custom sizes: built to the visible area your site allows.

SEE THE SEG LIGHT BOX RANGE

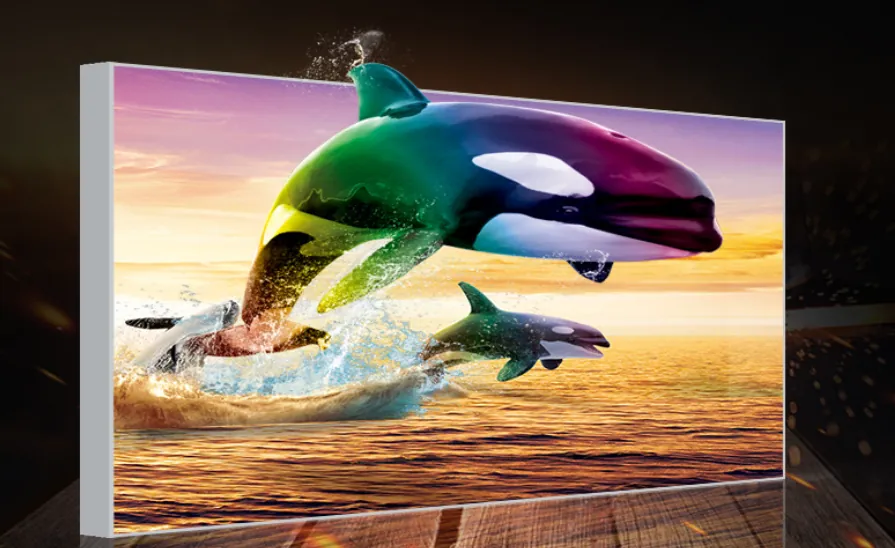

SEG fabric light box with a tensioned printed graphic

Key advantages

Key Advantages of the BrandMate Light Box Range

Change the graphic, keep the frame

Silicone-edge fabric replaces in minutes. The frame, fixings and electrical stay on the wall.

Uniformity you can check

Nine-point measurement method and a retained sample agreed before production.

Depth matched to the site

30, 50, 80, 100 and 120 mm profiles for recess, wall, hanging or freestanding.

Electrical configured by market

100–240 V input, 12/24 V driver and the plug type your destination requires.

Batch consistency across stores

One LED, driver and fabric specification across every location in the rollout.

Export packing planned

Corner protection, foam, store-level labels and a container loading plan.

Applications

Where Buyers Use These Displays

Retail & shopfitting

Window displays, campaign walls and menu boards with front-access graphics.

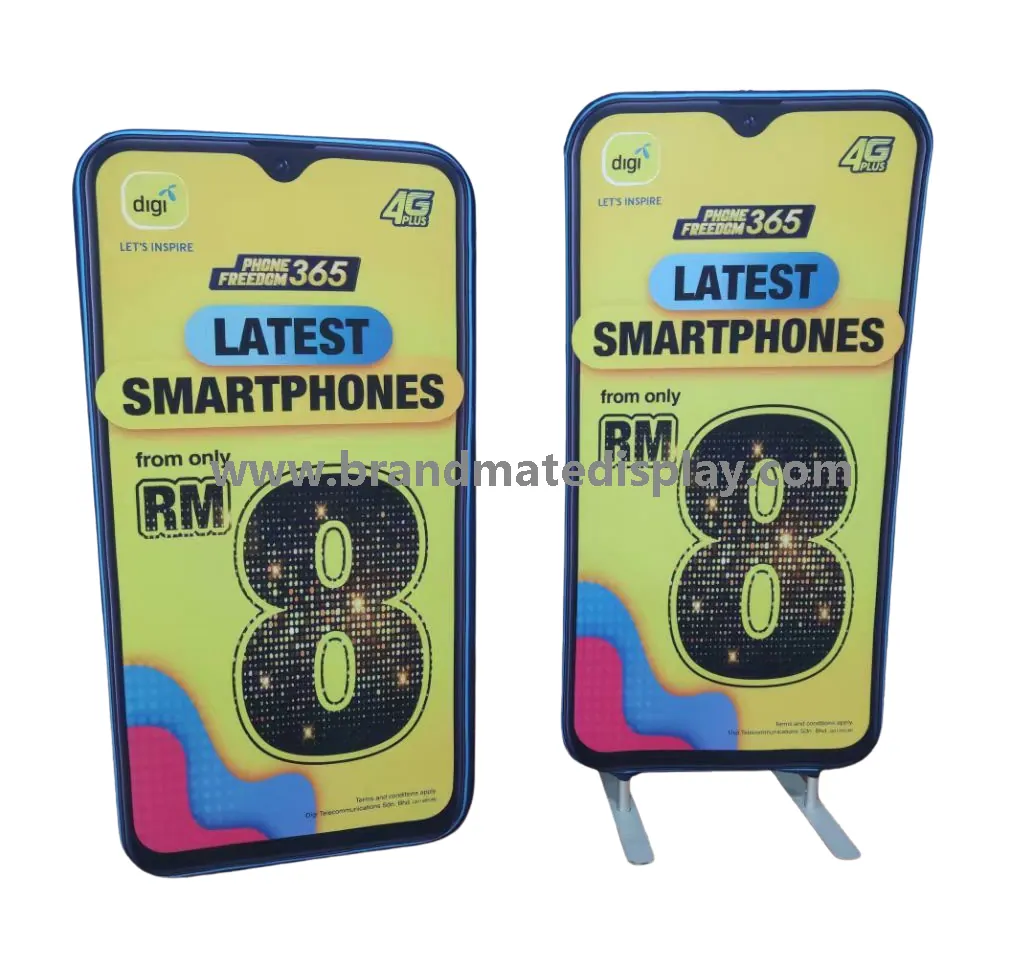

Exhibitions & events

Backwalls, counters, photocalls and portable kits that repack for the next show.

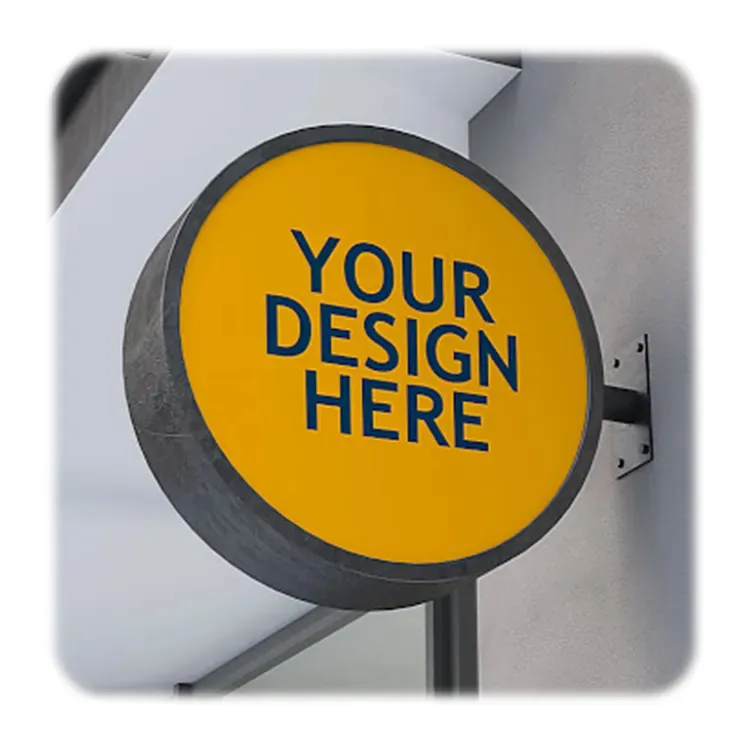

Outdoor & pavement

Double-sided storefront signs, projecting signs and A-frames with sealed enclosures.

EXPLORE ALL DISPLAY FAMILIES

How it works

How a Custom Order Runs, From Drawing to Container

STEP 01

Send the drawing or a site photo

We confirm visible size, depth, mounting and power access before quoting.

STEP 02

Specification review

A written specification and quote, with the parameters that need your approval.

STEP 03

Sample and production

Pre-production sample checked against a written list, then batch production.

STEP 04

QC and shipping

Aging test, packing inspection, carton labels and a loading plan.

After-sales

After-Sales and Technical Support

Every order gets a named contact, a spare-parts list and installation notes. Replacement graphics can be reordered against the original template, so a campaign change does not restart the project.

Reply within 2 hours during working days.
Spare-parts list agreed at order stage.
Installation and cable-exit drawings supplied with the goods.
Replacement graphics reordered against the approved template.

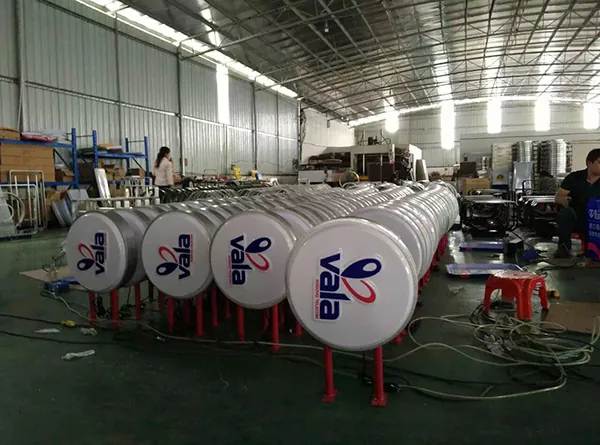

Display production workshop and assembly area

Why buyers choose us

Why Buyers Choose BrandMate Display

15+ years of professional production

Frames, LED assembly and graphic finishing run in-house, so the whole order stays under one production and quality standard.

Smooth communication

One named contact from quote to shipment. We reply within 2 hours on working days and confirm every change in writing.

180+ global brand cooperations

Retail, exhibition and signage projects for brand owners, agencies and distributors across multiple markets.

Stable production time

A stage-by-stage schedule from drawing sign-off to loading, with buffer planned around Chinese New Year and venue deadlines.

Top quality material, premium products

6063 aluminium profiles, matched drivers and backlit-rated fabric, checked at goods-in and again before packing.

Cooperation risk controlled to the lowest

Written specification, approved sample, batch QC records, packing drawing and a spare-parts list before shipment.

Low MOQ accepted

Trial orders and small batches are welcome, so a new market or a single store can be tested before a full rollout. Send your quantity and destination and we will confirm the minimum for your configuration.

Technical parameters

Technical Parameters and Options

Use this table to compare quotes. The approved drawing and sample define the actual product; where a project needs a value outside these ranges, it is quoted and confirmed in writing.

Parameter	Typical range	What the buyer confirms
Visible graphic size	Custom, built to your site	Visible area, not overall frame size; artwork bleed
Frame depth	30 / 50 / 80 / 100 / 120 mm	Wall clearance, recess depth, service access
Light source	Edge-lit or direct back-lit	Brightness target and viewing distance
Brightness	Typically 2,000–5,000 cd/m²	Measurement method and meter
Uniformity	≥85% target across nine points	Measurement points and pass/fail rule
Colour	3000 / 4000 / 6500 K; CRI ≥80 or ≥90	Brand colour approval under store lighting
Electrical	100–240 V AC input; 12/24 V DC driver	Destination voltage and plug type
Ingress protection	IP20 indoor; IP54–IP65 outdoor	Exposure: covered, direct rain, coastal
Packing	Carton, foam, corner protection; wooden case optional	Loading plan and store-level labels

Full technical specification reference →

Configuration

Available Configuration Options

Visible size: built to your drawing, not limited to catalogue sizes.
Frame depth: 30 / 50 / 80 / 100 / 120 mm profiles.
Mounting: wall, hanging, recessed, freestanding or ceiling.
Single-sided or double-sided construction.
Edge-lit or direct back-lit LED arrangement.
Colour temperature 3000 K, 4000 K or 6500 K; CRI ≥80 or ≥90.
Input 100–240 V AC with 12/24 V DC driver; plug type per market.
SEG polyester 110–260 g/m² with 10 mm or 12 mm silicone edge.
Front-access or rear-access service; replacement graphic templates.
Carton with corner protection and foam; wooden case optional.
Store-level labels, spare-parts list and container loading plan.

Documentation

Documentation and Compliance You Can Verify

Compliance is specific to the SKU and the destination market. We provide the report holder, the exact model covered, the standard and the report date. A certified driver does not certify the complete light box.

Product specification sheet for the quoted configuration.
Driver and power-supply datasheet.
QC photographs of your batch before packing.
Packing drawing and carton label sample.
Compliance documents applicable to the destination market.
Spare-parts list and replacement-graphic instructions.

See the QC process · See packing and logistics

Manufacturing strength

Inside the Factory

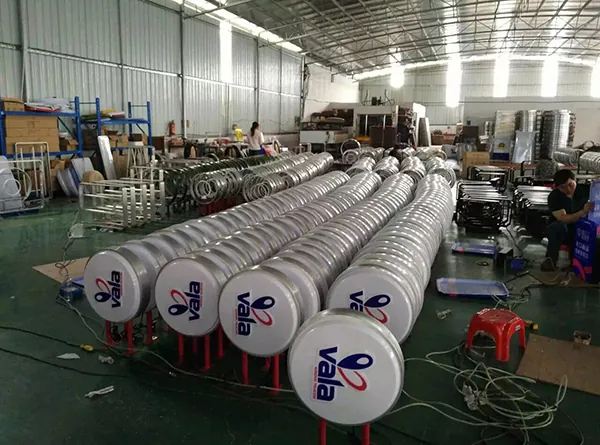

Frames, LED assembly and graphic finishing run under one production plan. That is what allows a depth change, a voltage change or a store-list reprint to be handled without restarting the order.

Vacuum forming a double-sided light box body

Light box frame and LED assembly workshop

What Buyers Ask Before Placing a Light Box Order

Three questions decide most projects. Open one to read the short answer; the full list of 18 buyer questions is on the FAQ page.

Why do two quotes for the same visible size look so different?

Visible size is only one line of the specification. Profile depth, LED pitch, diffuser grade, driver model, fabric weight and packing all change the result and the cost. Ask every supplier for the same six values, plus the method they use to measure brightness and uniformity. Our technical specification reference lists what belongs in a like-for-like comparison.

How can I verify brightness and uniformity before the full batch?

Agree the measurement method first: meter type, distance from the face and nine measurement points. Approve a pre-production sample with your graphic fitted, record the readings, and keep that sample as the batch reference. A single centre reading hides dark corners, and average brightness without a minimum uniformity figure cannot be enforced at goods-in.

What actually drives lead time on a custom order?

Drawing sign-off, pre-production sample, artwork proof, LED and driver lead time, packing and freight. The clock starts when the drawing is approved, not when the enquiry arrives. Ask for a stage-by-stage timeline with owners, and plan backwards from the opening or show date, including the Chinese New Year window and venue receiving deadlines.

See all 18 buyer questions →

Prefer to send a drawing? Email [email protected] with the visible size and destination. We will reply within 2 hours with the specification points that need your approval.

We’re Ready to Assist You

Send the display type, visible size, quantity and destination. We will reply within 2 hours.
