Custom LED Light Box & SEG Display Manufacturer

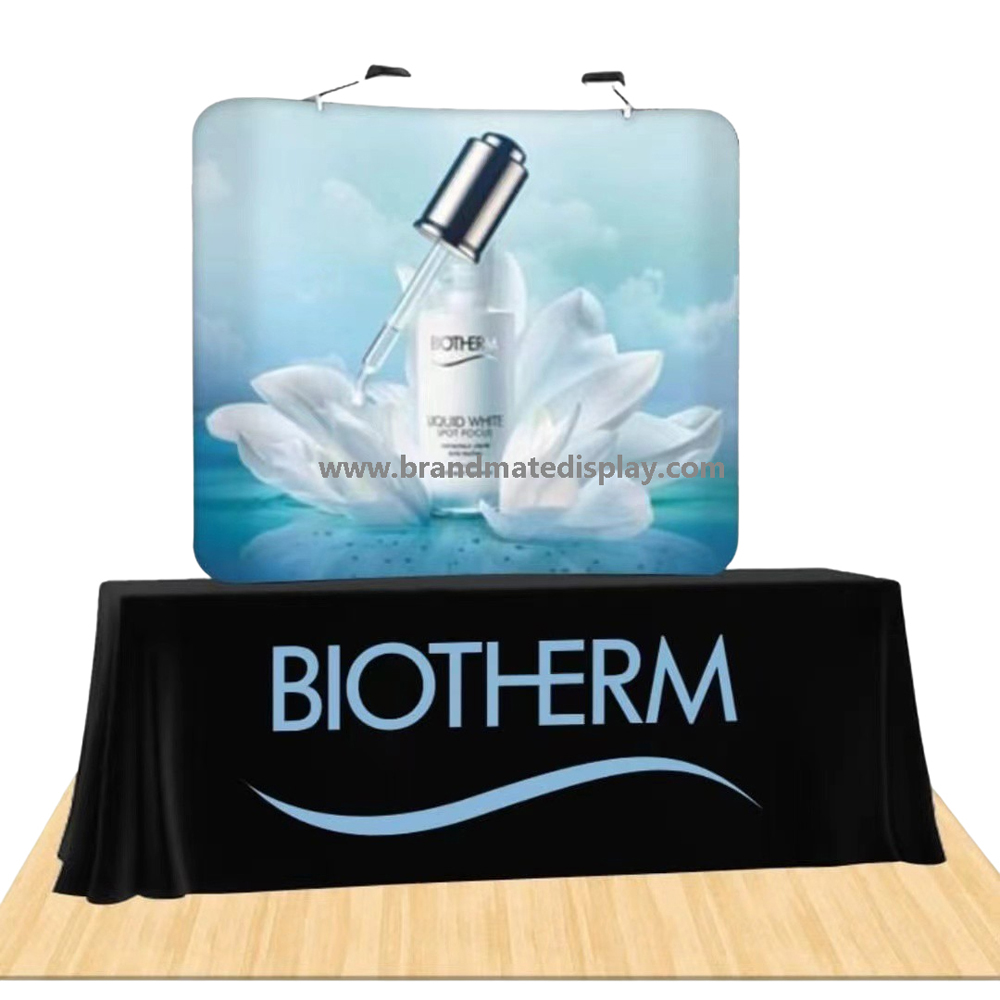

Custom waveline tradeshow displays for brands that want a softer, more dynamic backwall shape while keeping the system portable and reusable.

A waveline display uses a shaped frame to create a flowing profile rather than a completely flat wall. The design can add depth and movement to a booth, but the footprint, graphic pattern and transport dimensions must be confirmed carefully.
| Buyer decision | What to confirm |
|---|---|
| Wave geometry | Overall width, depth and viewing direction |
| Graphic fit | Template matched to the exact curved/wave frame |
| Footprint | Maximum projection into the booth aisle or working area |
| Setup | Frame section identification and graphic orientation |
| Transport | How the shaped frame breaks down for bags/cases |
The frame shape changes the footprint. A waveline can project forward or backward more than a straight wall, so the buyer should review plan-view dimensions rather than only front elevation.
A shaped surface needs a dedicated artwork template. Graphics created for a straight wall should not be assumed to fit a waveline frame because the finished contour and tension are different.
During assembly, frame orientation matters. Section labels and a clear installation reference help avoid building the wave in the wrong direction or fitting the graphic reversed.
The transport plan should protect shaped frame sections and keep them grouped with the correct graphic. Packed dimensions should be confirmed before event freight is booked.
Approve plan-view wave depth, overall width and viewing direction. A front-elevation image cannot show all rear supports or aisle/working-space constraints. Ask for overall finished W×H×D and any service clearance required by this wave-shaped tension graphic structure.
Confirm the complete frame, directional frame joints, foot pieces and spares, graphic support and surface finish against the project drawing. Material descriptions should be specific to the quoted model, not automatically inherited from another exhibition product family.
Define one-sided or two-sided use, camera/visitor approach directions and the orientation of any back face. A two-sided request may change the support, graphic and packaging configuration.
Use the dedicated wave-profile artwork template and record final print size, bleed, protected area, attachment method and print-revision code. Printing cannot be finalized correctly from a nominal booth width alone.
Document how to orient the curved wave frame and fit the matching graphic. An installation sheet should name every frame section, show graphic order and note which operation, if any, requires tools or two installers. Do not advertise an untested universal setup time.
Before the event verify booth depth/aisle clearance for projecting geometry, installation labor rules, power/cable requirements if fitted and permissible attachment methods. “Portable” does not automatically mean every venue allows self-installation.
List directional frame joints, foot pieces and spares, graphics, carry case and fasteners separately. Ask for part identifiers and an acceptable spare kit for important multi-event programs; keep the approved component revision with the packing list.
Inspect correct wave direction and graphic tension, finished dimensions, hardware completeness, frame surfaces, printed graphics and assembly fit. If any illuminated accessories are ordered, inspect electrical functions against the model quotation.
For a wave-shaped tension graphic structure, request the packed size, actual gross weight, case count and protection of the frame/graphic system. Event material handling and freight should be budgeted separately where relevant.
Plan multiple-event waveline setups with labelled components. Number parts, store graphic templates and report damaged components after each event. Keep an updated inventory so that a missing connector or replacement graphic does not force unnecessary re-purchase of an entire display.
| RFQ Item | Specify |
|---|---|
| Product | Waveline Trade Show Display |
| Installed dimensions | plan-view wave depth, overall width and viewing direction |
| Graphic | dedicated wave-profile artwork template |
| Assembly | orient the curved wave frame and fit the matching graphic |
| Hardware / spares | directional frame joints, foot pieces and spares |
| Site conditions | booth depth/aisle clearance for projecting geometry |
| Inspection | correct wave direction and graphic tension |
| Order | Quantity, destination, artwork readiness, packing and deadline |
For waveline projects we focus on the geometry, booth footprint and graphic template first. This prevents a visually attractive concept from creating installation or space problems later.
They are related shaped-display concepts, but the exact profile can differ. Confirm the intended geometry from a drawing or reference image.
Yes, when the exact frame and artwork template are retained.
Yes, provided the frame and connectors remain in suitable condition.
