Outdoor Double-Sided LED Signage Manufacturer
Custom outdoor double-sided LED signage for B2B storefront and commercial projects. Specify exposure, IP requirement, structure, electrical system, mounting, QC and packing before ordering.
BrandMateDisplay supplies custom outdoor double-sided LED signage for storefronts, hospitality, retail and commercial projects. This is not a one-spec-fits-all product: the correct frame, face material, mounting, electrical protection and weather resistance depend on the installation environment.
1. What Is Outdoor Double-Sided LED Signage?

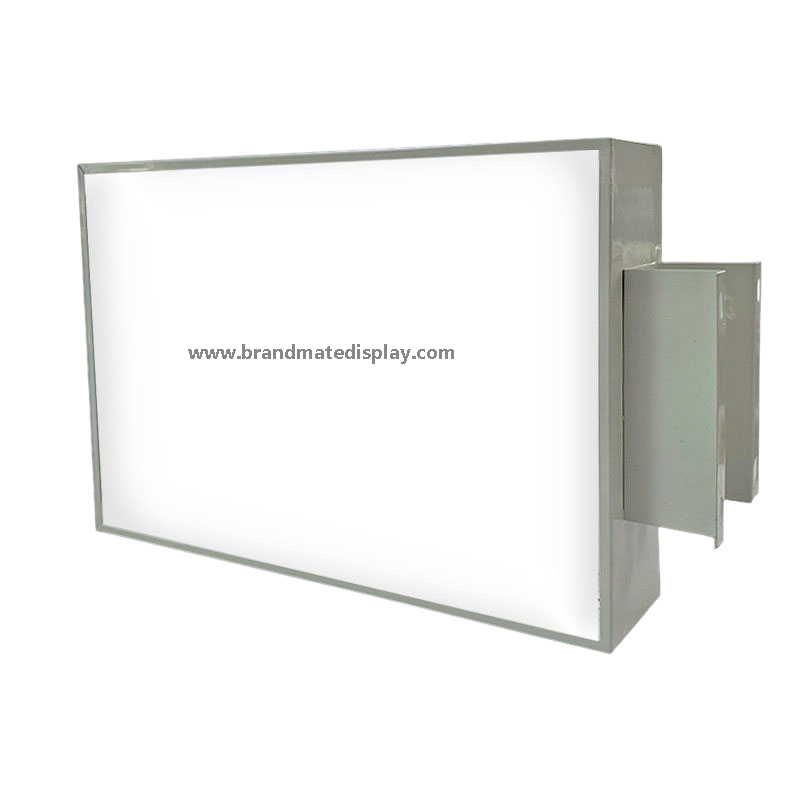

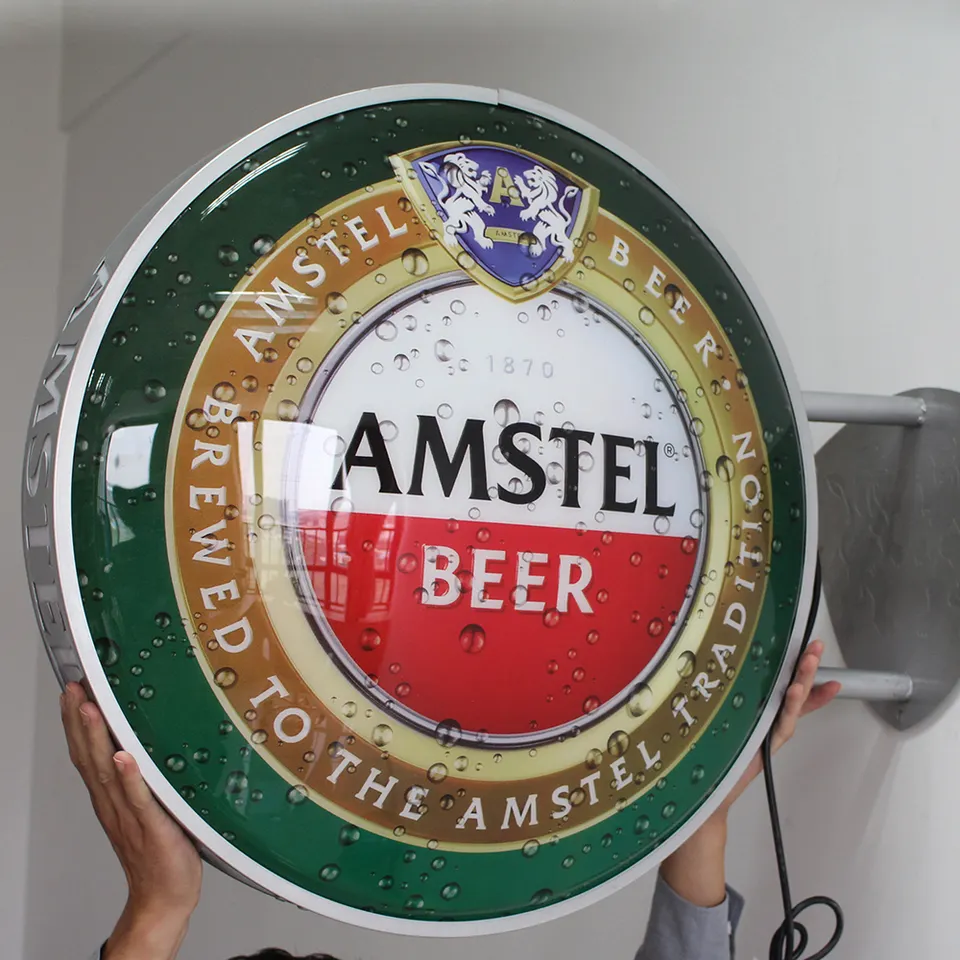

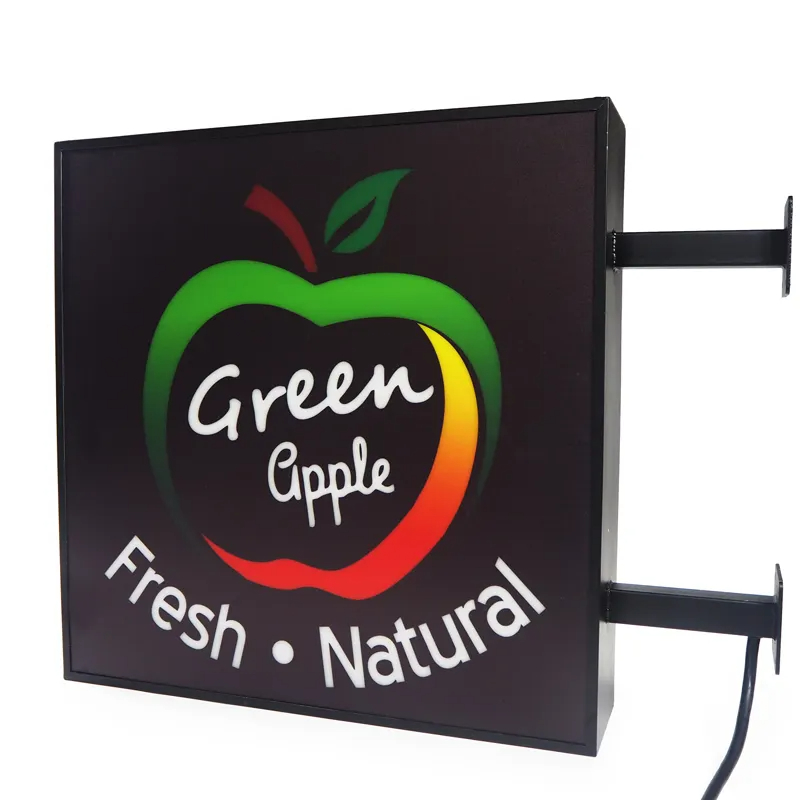

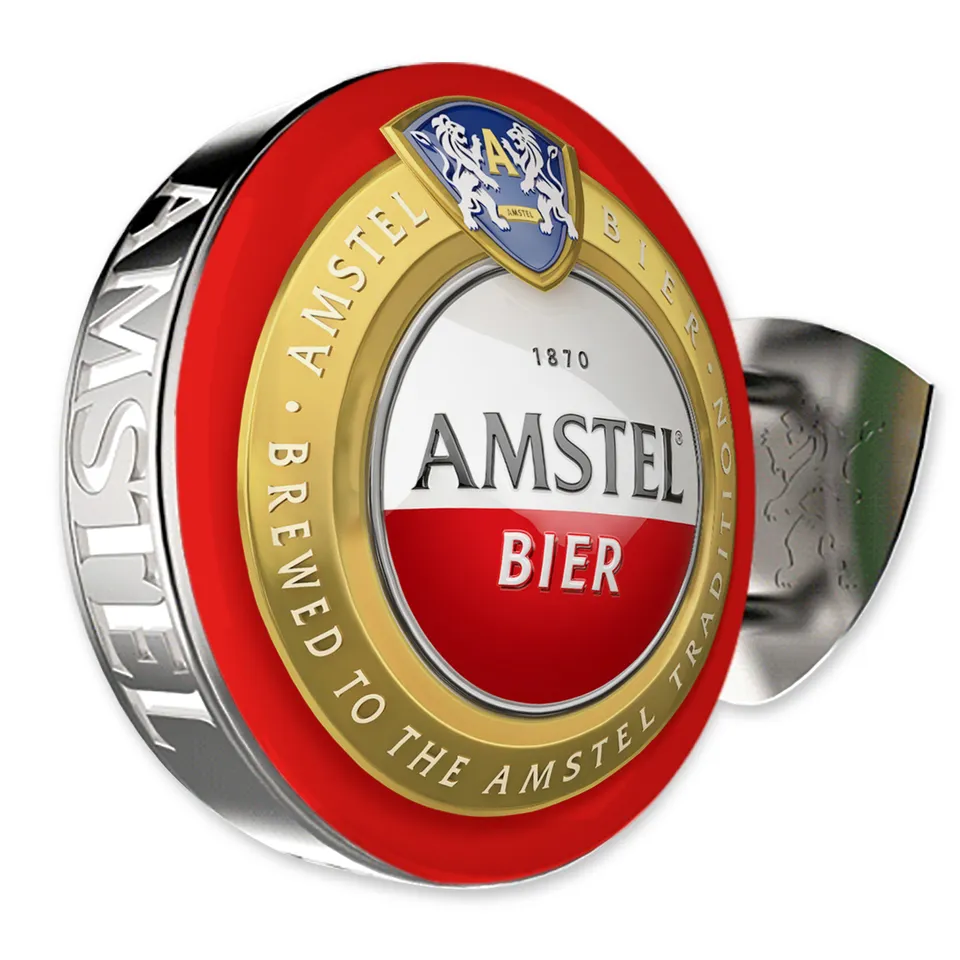

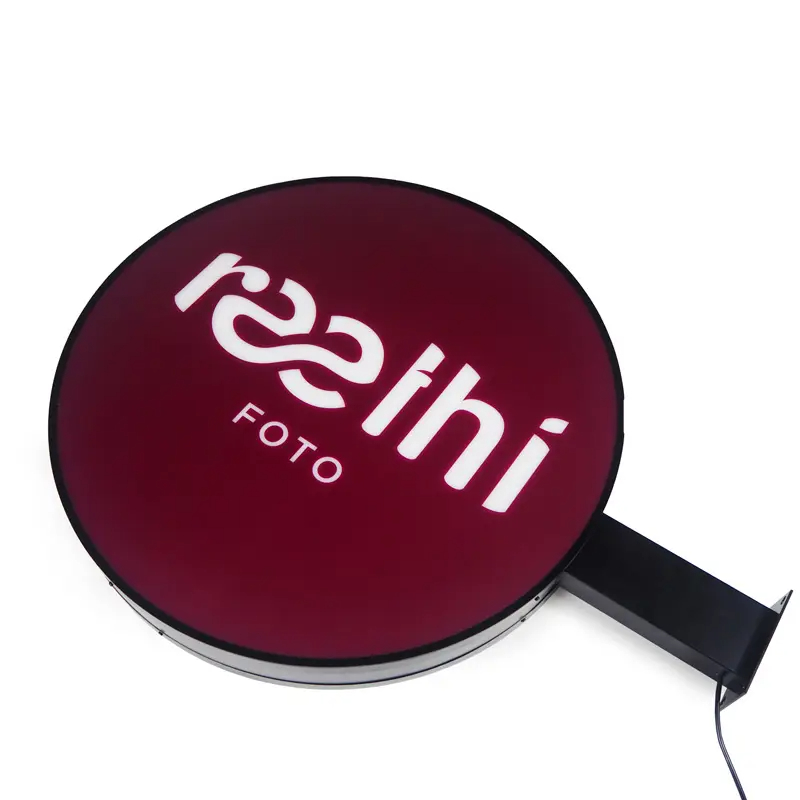

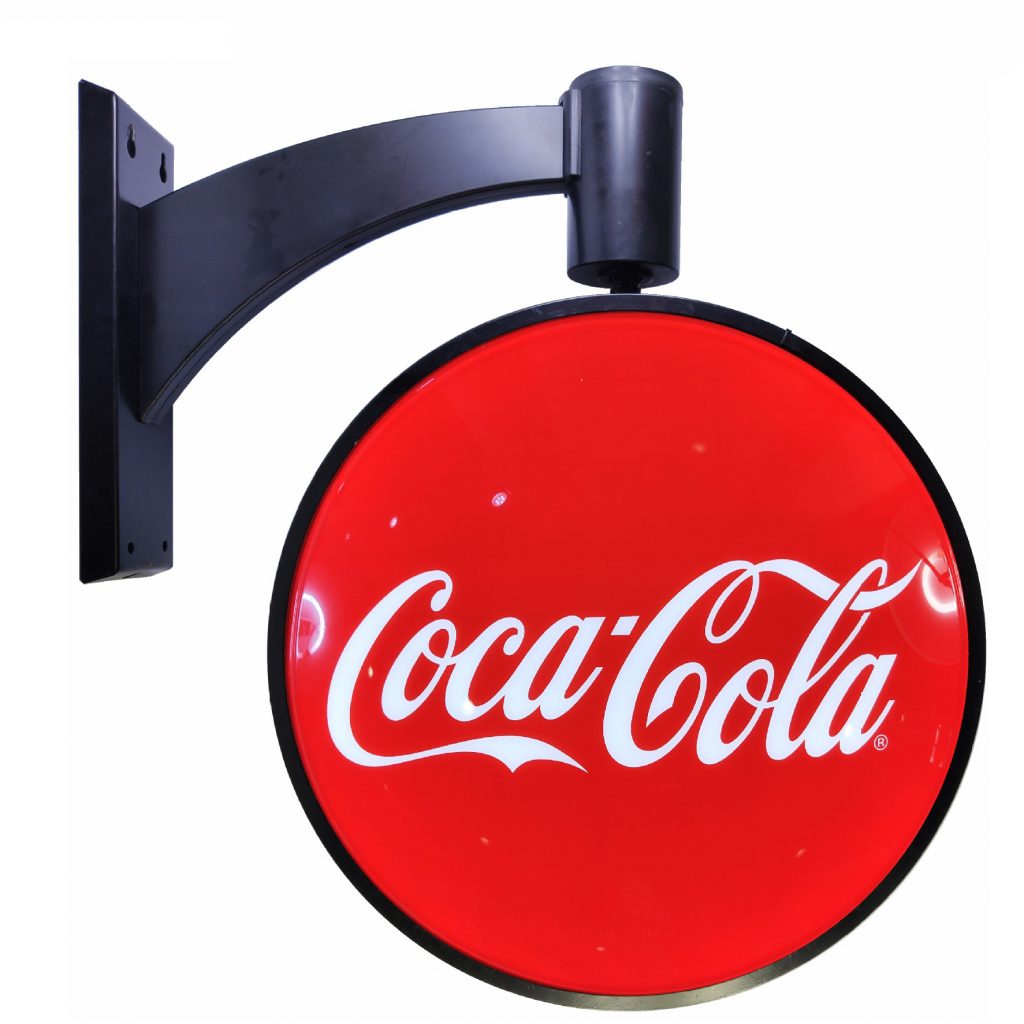

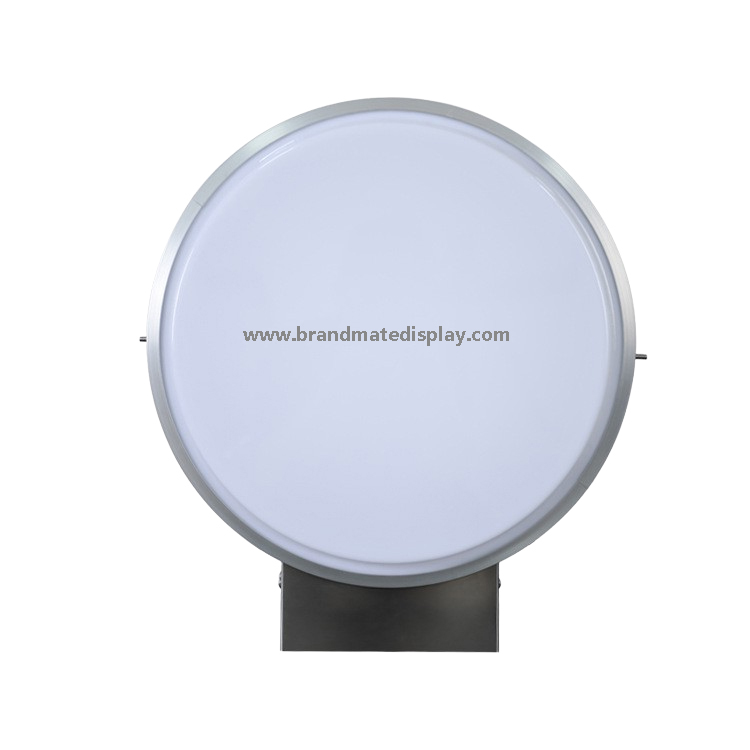

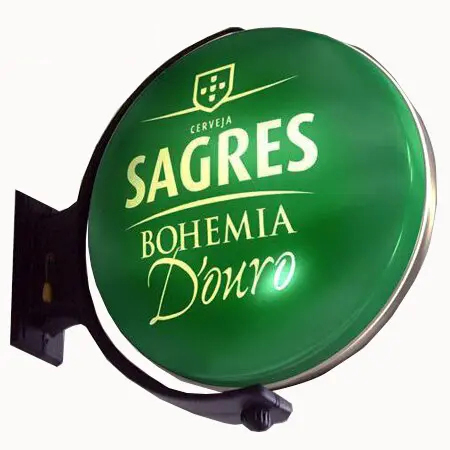

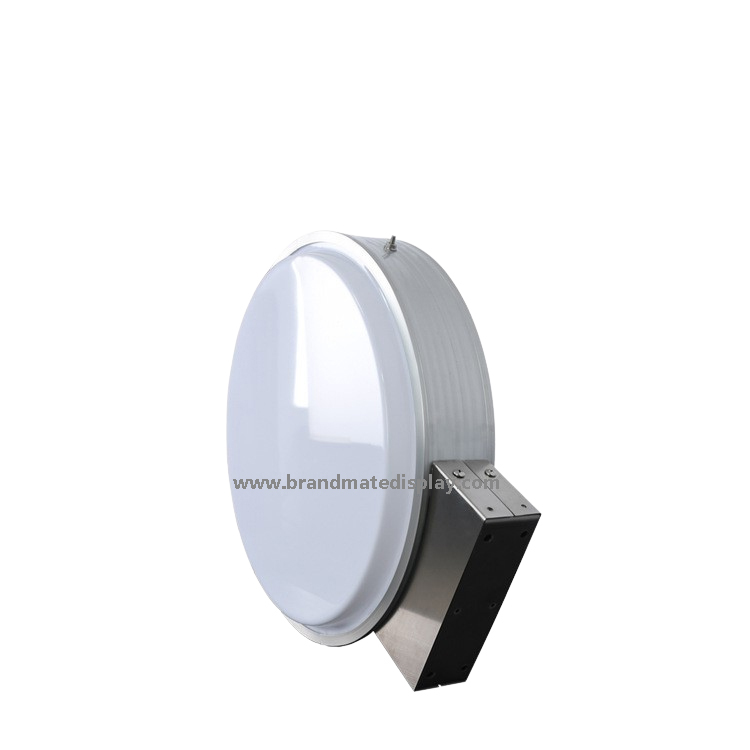

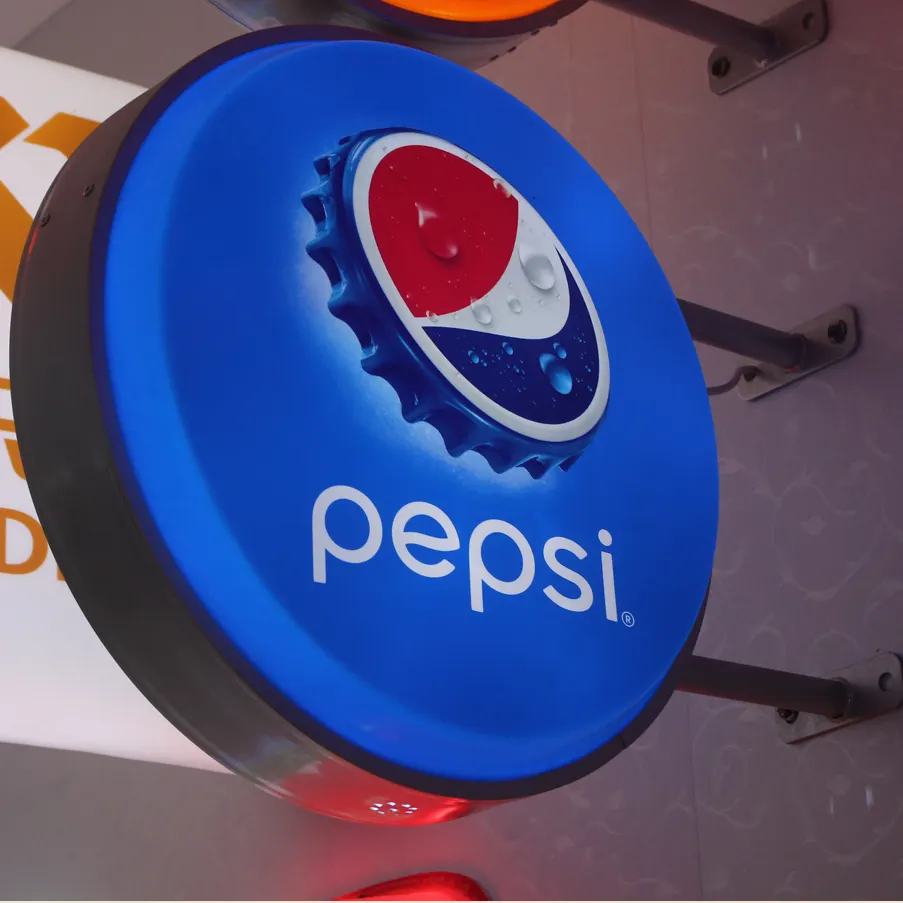

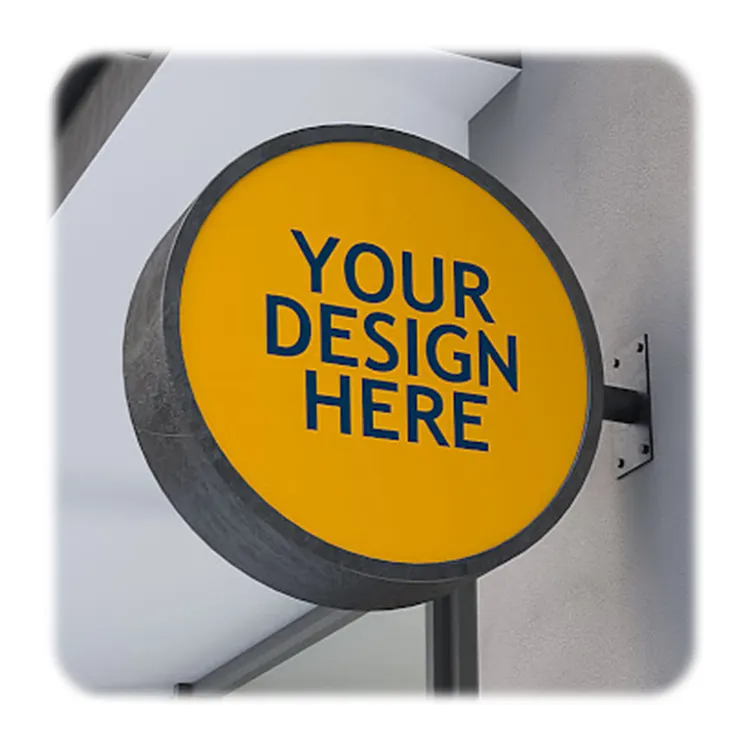

It is an illuminated sign designed to display a brand or message on two visible faces, commonly mounted perpendicular to a storefront or installed where traffic approaches from both directions. Depending on the project, the structure may be round, square, rectangular or custom-shaped.
2. Who Buys This Product?
- Sign companies and signage distributors
- Retail fixture and shopfitting contractors
- Restaurant, bar and hospitality projects
- Shopping-street and commercial-property projects
- Brand agencies and multi-location rollout teams
- Importers / wholesalers sourcing private-label illuminated signs
3. What Problem Does It Solve?
A flat wall sign is mainly visible from one direction. A double-sided projecting sign helps pedestrians or drivers identify the location while approaching from either side. Illumination extends visibility into evening hours, while custom graphics and shape help the sign match the storefront identity.
4. The First Buyer Question: How Exposed Is the Sign?
| Exposure | What to tell us | Why it changes the design |
|---|---|---|
| Sheltered | Under canopy / inside covered walkway | Lower direct exposure to rain and sun |
| Semi-exposed | Occasional wind-driven rain / partial cover | Sealing, cable entry and drainage become more important |
| Fully exposed | Direct rain, sun, wind and temperature changes | Requires project-specific enclosure, electrical and mounting review |
5. Weatherproof Does Not Mean One Universal Specification
We do not apply one blanket “waterproof” claim to every sign. If your project specifies an IP rating, tell us before quotation. The quoted configuration should then be reviewed for enclosure sealing, cable entry, joints, face material, drainage and electrical protection.
6. IP Rating: Confirm It for the Exact SKU
An IP requirement should be tied to the exact product configuration, not copied from another model. When an IP rating is required, ask which part of the assembly it applies to and what evidence supports it. This is especially important for projecting signs because brackets, cable entries and service openings are part of the installed system.
7. Structure & Materials
The structure normally combines a formed or fabricated frame, illuminated faces, internal lighting/electrical components and a wall or project-specific mounting bracket. Material and finish should be selected according to sign size, shape, exposure and project appearance.
8. Face & Graphic Options
- Printed / applied graphic face depending on the product construction
- Vacuum-formed or shaped face for selected sign designs
- Custom logo / brand artwork
- Round, square, rectangular and selected custom shapes
- Single-color or full-color brand graphics as applicable
9. Lighting & Optical Requirements
Ask how the sign will look after the final face/graphic is installed. LED spacing, enclosure depth, diffuser/face construction and internal reflection all affect visible hotspots and edge shadowing. If your brand requires a defined CCT, CRI or luminance target, add it to the RFQ.
10. Electrical Configuration
- Destination-country mains voltage
- Driver / power supply configuration
- Hard-wire or plug requirement
- Cable entry direction and sealing
- Driver location and future service access
- Any local electrical / compliance requirements
11. Double-Sided Means Two Viewing Directions, Not Just Two Graphics
The structure, lighting and bracket must be designed as a complete double-sided sign. The sign depth, internal lighting and wall interface should be confirmed at drawing stage rather than treating the second face as an afterthought.
12. Mounting & Bracket Design
Projecting signs create leverage on the wall and mounting hardware. Tell us the installation method, sign size, approximate mounting height and wall/substrate information if known. The product supplier can provide sign and bracket dimensions, but final site fixing may need local installer or engineering review depending on project rules and wind conditions.
13. Service Access
A sign should be maintainable after installation. Ask how the face opens or removes, where the driver is located, how LEDs can be serviced and whether the bracket or enclosure blocks access. This becomes important for signs mounted high above ground or in busy commercial areas.
14. Customization Options
- Custom finished size
- Round / square / rectangular / project-specific shape
- Brand color and graphic
- Project-specific bracket
- Electrical configuration for destination market
- Weather-protection requirement by installation environment
- Private-label / project labeling where required
15. Specification Table for RFQ
| Specification | What the buyer should provide / confirm |
|---|---|
| Finished size | Width × height × depth or target visual size |
| Shape | Round / square / rectangle / custom |
| Mounting | Projecting bracket / wall / suspended / other |
| Exposure | Sheltered / semi-exposed / fully exposed |
| Required IP | Specify if mandated by project |
| Electrical | Country, voltage, plug or hard-wire |
| Lighting | CCT / CRI / brightness requirement if applicable |
| Graphic | Artwork / logo / face construction requirement |
| Quantity | Per size / per store / per phase |
| Deadline | Sample / production / installation date |
16. Production Flow
- Requirement and drawing review
- Frame / face / bracket / electrical configuration confirmation
- Artwork or graphic confirmation
- Sample / pre-production confirmation when required
- Frame and component production
- Lighting and electrical assembly
- Face / graphic fitting
- Final inspection
- Protective packing and shipment
17. Quality Control Points
- Dimensions and shape against approved drawing
- Frame finish and visible workmanship
- Lighting and electrical function
- Graphic / face fit
- Bracket and accessory completeness
- Specified outdoor-protection details where applicable
- Final visual check before packing
18. Packing & International Shipping
Projecting signs can have vulnerable edges, faces and brackets. Packing should protect the illuminated faces and keep mounting/electrical accessories clearly identified. Ask for packed dimensions and gross weight when freight cost or site handling matters.
19. Maintenance
- Isolate power before electrical service.
- Inspect brackets and fixings periodically according to local installation practice.
- Keep drainage paths and service openings clear where applicable.
- Clean faces with materials compatible with the finish/graphic.
- Keep product drawings and electrical data for future maintenance.
20. Why Choose BrandMateDisplay for Outdoor Signage?
For outdoor signage, the useful supplier conversation is about the installation and risk—not about adding more adjectives. We work from the actual project conditions and identify which dimensions, bracket, electrical arrangement and protection requirements still need confirmation before production.
21. Outdoor Double-Sided Signage FAQ
Can you make custom shapes and sizes?
Yes, subject to the construction and engineering review. Send a drawing or target size and shape.
Is every model IP65?
No blanket IP claim is applied. If your project requires IP65 or another rating, state it in the RFQ so the exact quoted configuration can be checked.
Can it be mounted perpendicular to a storefront?
Yes, projecting installation is a common application. The sign size, bracket, wall substrate and local load requirements should be reviewed together.
What is the MOQ and lead time?
MOQ and lead time depend on size, shape, face construction, electrical system, quantity and required protection. They are confirmed in the project quotation.
22. Request an Outdoor Signage Quote
Send: size / shape / quantity / mounting / exposure / required IP if any / destination / voltage / artwork / deadline. Site photos or installation drawings are especially useful for projecting signs.
